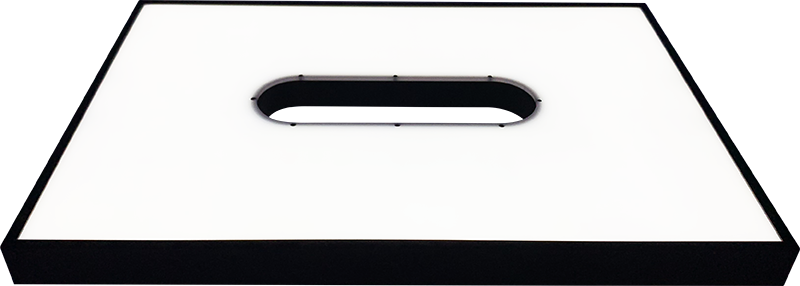

中孔面光源，在常规面光源基础上开圆孔、方孔或椭圆孔，可多孔。高密度LED分布光源底部，均匀性好，光线柔和，亮度高，适用于大幅面的均匀照射。尺寸规格多样，可定制，应用范围广，多种安装方式方便现场安装。
| 型号 | 颜色 | 发光面(mm) | 开孔(mm) | 外形尺寸(mm) | 电压 | 功率 | 适用电源 |
| HFL080080-B20C | R/G/B/W | 80x80 | 15 | 90x90x20 | 24V | / | 模拟控制器 数字控制器 频闪控制器 |
| HFL090090-A10C | R/G/B/W | 90x90 | 25 | 100x100x20 | 24V | 6.5W | |
| HFL100080-B20C | R/G/B/W | 100x80 | 45 | 110x90x20 | 24V | / | |
| HFL100100-A10C | R/G/B/W | 100x100 | 40 | 110x110x20 | 24V | / | |
| HFL125125-A10C | R/G/B/W | 125x125 | 40 | 135x135x20 | 24V | / | |
| HFL150150-B20C | R/G/B/W | 150x150 | 40 | 160x160x20 | 24V | 15W | |
| HFL170130-A10C | R/G/B/W | 170x130 | 135x80 | 180x140x20 | 24V | 10W | |
| HFL170170-B20C | R/G/B/W | 170x170 | 50 | 180x180x20 | 24V | 24W | |
| HFL190190-A10C | R/G/B/W | 190x190 | 46 | 200x200x20 | 24V | 24W | |
| HFL200200-D40C | R/G/B/W | 200x200 | 50 | 210x210x20 | 24V | 30W | |
| HFL220220-B10C | R/G/B/W | 220x220 | 50 | 230x230x20 | 24V | 26W | |
| HFL250250-B20C | R/G/B/W | 250x250 | 55 | 260x260x20 | 24V | / | |
| HFL280280-B20C | R/G/B/W | 280x280 | 50 | 290x290x20 | 24V | / | |
| HFL300200-A10C | R/G/B/W | 300x200 | 40 | 310x210x20 | 24V | 38W | |
| HFL300300-D40C | R/G/B/W | 300x300 | 40 | 310x310x20 | 24V | 75W | |
| HFL340250-A10C | R/G/B/W | 340x250 | 50 | 350x260x20 | 24V | 58W | |
| HFL350350-C30C | R/G/B/W | 350x350 | 55 | 360x360x20 | 24V | / | |
| HFL400300-C30C | R/G/B/W | 400x300 | 40 | 410x310x20 | 24V | 54W | |
| HFL400400-C30C | R/G/B/W | 400x400 | 50x50 | 410x410x20 | 24V | 120W | |
| HFL410250-A10C | R/G/B/W | 410x250 | 70 | 420x260x20 | 24V | 67W | |
| HFL450400-A10C | R/G/B/W | 450x400 | 60 | 460x410x20 | 24V | 95W | |
| HFL450450-A10C | R/G/B/W | 450x450 | 60 | 460x460x20 | 24V | 95W | |
| HFL470240-A10C | R/G/B/W | 470x240 | 65 | 480x250x20 | 24V | 65W | |
| HFL500400-B20C | R/G/B/W | 500x400 | 50 | 510x410x20 | 24V | 133W | |
| HFL500500-A-T-C-1 | R/G/B/W | 500x500 | 60 | 530x510x21 | 24V | / | |
| HFL590290-A-T-C-1 | R/G/B/W | 590x290 | R25x50 | 600x300x20 | 24V | / | |
| HFL600360-A-T-C-1 | R/G/B/W | 600x360 | 45 | 610x370x20 | 24V | / | |
| HFL650450-A10C | R/G/B/W | 650x450 | 50 | 660x460x20 | 24V | 120W | |
| HFL705550-A10C | R/G/B/W | 705x550 | 50 | 715x560x21 | 24V | 135W | |
| HFL1000400-A10C | R/G/B/W | 1000x400 | 40 | 1010x410x21 | 24V | / |
*波长及色温
白光：6000-6500k
红光：620-630nm
蓝光：455-460nm
绿光：520-525nm
红外：850nm、940nm
紫外：365-370nm、395-400nm
紫外和红外光源可根据客户要求定制，更多尺寸和颜色可咨询我司
*使用环境：温度0-40℃，湿度20-85%（非凝结）
*使用寿命：30000-50000小时
*服务：1年质保，免费技术支持，免费出借样品
